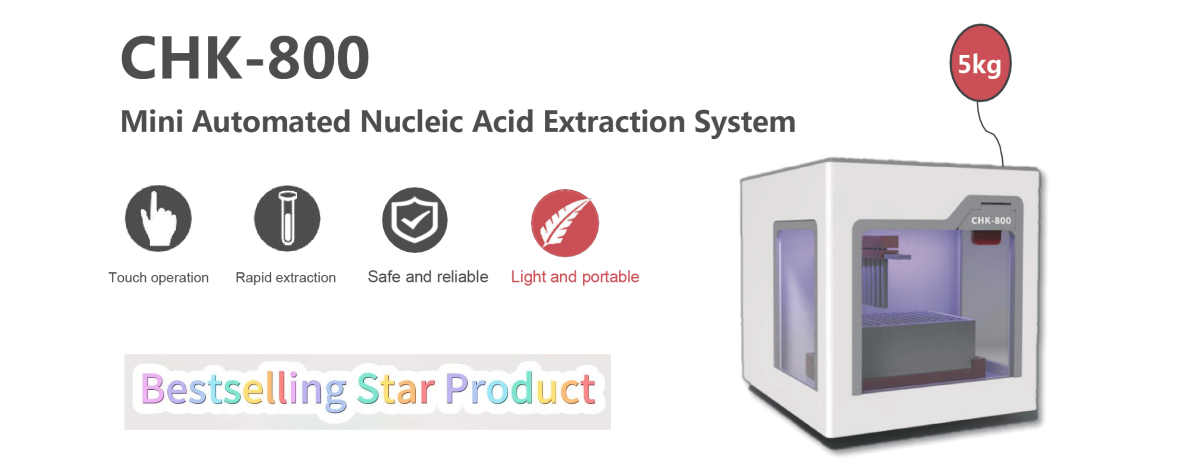

CHK-800 Automatic nucleic acid extractor

Short Description:

The information in this color page includes descriptions of both general technical specifications and system configurations, as well as descriptions of standard and selective configurations, and we do not warrant that selective configurations will be included in any product offering;


Product Detail

Product Tags

1

Product Features

  • Rapid extraction
Extract 8 samples at a time, The fastest extraction time is 10 minutes.
  • Pollution control
Optimized amplitude and frequency setting and room temperature lysis eliminate the possibility of aerosol extraction.
  • Safe and reliable
The built-in ULTRAVIOLET lamp removes possible nucleic acid contamination. Automatic, closed operation, with disposable consumables, greatly reduce the risk of chemical reagents and pathogenic microorganisms causing harm to the operator.
  • Easy to operate
Built-in template program, one-click start, efficient and convenient.

Equipment Parameters

Product Name

Working principle

Mini Automatic nucleic acid extractor

Model

CHK-800
Magnet bar method Sample volume 20 ~ 200 μL
Number of magnet bar 8 Sample throughput 1 ~ 8
Magnetic beads recovery > 95% Consumable reagents

8 - row magnetic sleeve, 96 hole deep hole plate,Magnetic bead nucleic acid extraction kit

Sensitivity

10 copies/mL inter-hole deviation CV ≤ 5%
Temperature control RT ~ 99 ℃,±1 ℃

Operating time

15 ~ 30 min/time
Pollution control Uv disinfection

Shock blending

Three gears to adjust
Operation interface In both Chinese and English, 7 inch touch screen, one click to start Program management Freedom definition template, can store 999 custom procedures

Power

AC 110~240 V,50 Hz,60 W Work environment 10 ~ 40 ℃, < 80% RH
Dimension (L*W*H) 250 mm * 200 mm * 205 mm Equipment net weight 5.0 Kg
Combination scheme PortLab-3000(CHK-800,UF-300)
1

Shanghai Chuangkun Biotech Inc.
Area A, Floor 2, Buiding 5, Chenxiang Road, Jiading District, Shanghai, China
Tel:+86-60296318 +86-21-400-079-6006
Website: www.chkbio.cn E-mail: admin@chkbio.com

The information in this color page includes descriptions of both general technical specifications and system configurations, as well as descriptions of standard and selective configurations, and we do not warrant that selective configurations will be included in any product offering; Longline Medical Reserves the right to modify product specifications and/or discontinue production of any product at any time without prior notice and shall not be liable for any consequences arising from the use of this colour sheet.Please refer to the instruction for contraindications or precautions
